MICRO FIBER LASER SYSTEMS

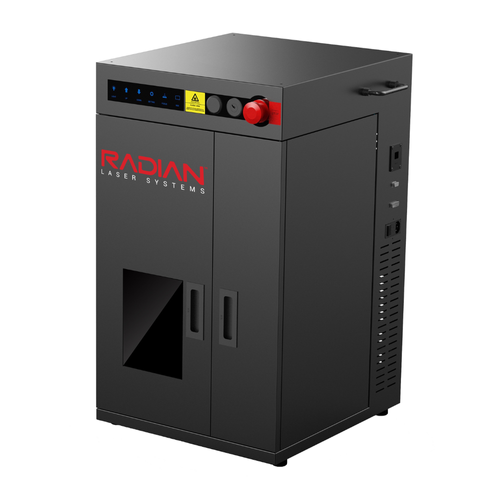

The Radian 2D Micro Fibers Laser System offer a fully enclosed small and portable form factor for a variety of applications. Great for marking flat metals in low volume or entry level operations. Easily removable doors and side panels provide the ability to mark larger objects within the 6x6” marking area. Easy to operate and maintain.
Key Features:
Ultra Fast & Precise Galvanometer Laser
Small and Portable Form Factor
Auto Focus Optional

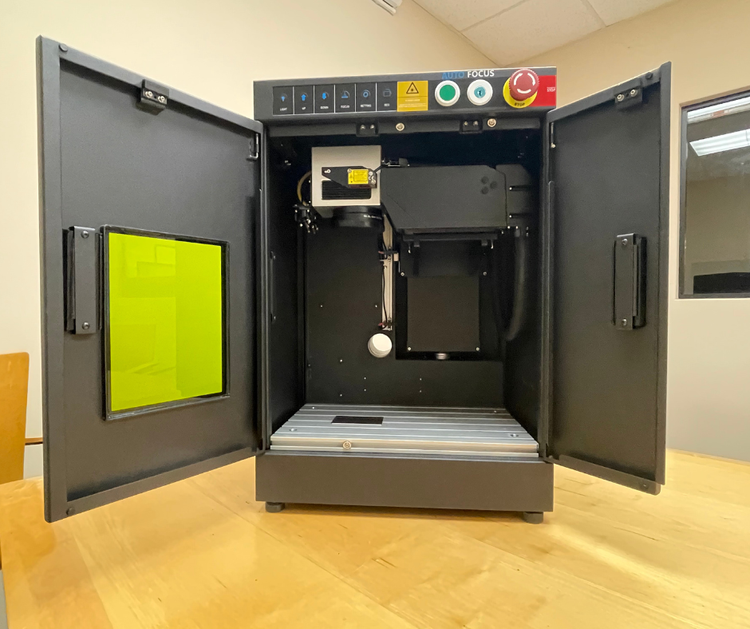

Detachable Doors and Side Panels to Accommodate Large Work Pieces
Expansion Features Such as Rotary and Indexing Tools
MICRO MINI FIBER LASER SYSTEM FEATURES
MATERIALS AND COMMON USES
-
Aluminum
Anodized Aluminum
Brass
Bronze
Carbide
Copper
Gold
Platinum
Silver
Stainless Steel
Titanium
-
Automotive Accessories - Logos, Text
Electronic Components - Serial Numbers, Barcodes, Labels
Household Products - Knobs, Faucets, Fixtures
Industrial Manufacturing - Serial Numbers, Part Numbers, Data Codes
Medical Devices - Serial Numbers, Barcodes, Labels
-
Firearms - Logos, Checkering, Art
Hardware/Tools - Personalization, ID Marking
Jewelry - Personalization, Logos, Origin Codes
Trophies - Personalization

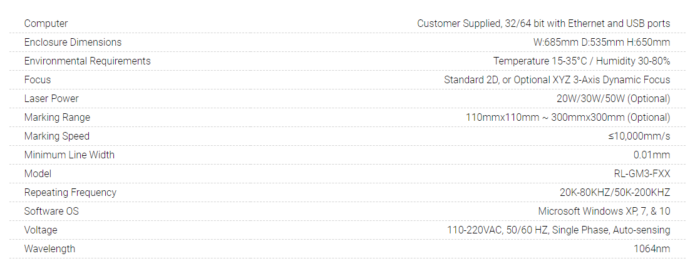

MICRO FIBER LASER TECHNICAL SPECIFICATIONS
WHAT IS A FIBER LASER?
A fiber laser is a solid-state laser in which the active medium is an optical fiber doped with rare-earth ions. When an external energy source, such as a pump diode, is applied to the fiber, it excites the rare-earth ions and causes them to emit photons. These photons bounce back and forth within the fiber, creating a highly concentrated beam of light. This beam is then amplified as it passes through additional doped fibers or other optical components. The particular wavelength (1064nm) and other unique properties of fiber lasers make them ideal for a variety of industrial, medical, and scientific applications, including cutting, welding, and drilling materials, as well as for use in telecommunications and spectroscopy. Sometimes you will hear the terms Q-Switched laser or MOPA (Master Oscillator power Amplifier) used to describe fiber lasers. Q-Switched lasers have fixed pulse widths and cost less than MOPA sources that have wider frequency range and variable pulse width for more marking control and precision.
MICRO FIBER LASER ACCESSORIES (OPTIONAL)
Rotary Motor
Card Rotary Disk
Safety Glasses
Foot Switch
